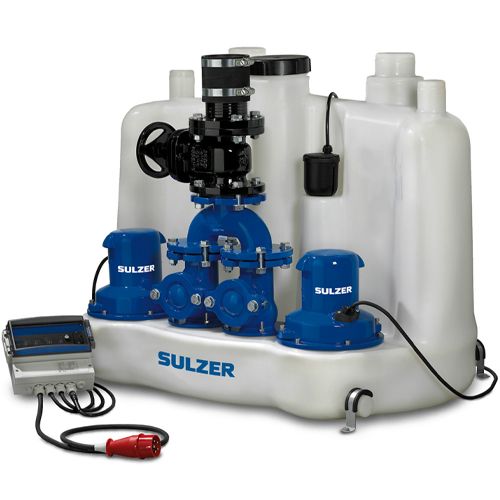

ABS Sanimat 2002 HD Lifting Station 415v

SKU
07565203
MRRP £11,483.00 + VAT Our price £6,890.00 (+ VAT) Incl. VAT: £8,268.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

ABS Sanimat 2002 HD Lifting Station 415v - 07565203

Flood-proof, double lifting station, for automatic sewage pumping from areas below the backwash level in accordance with EN 12050-1. Ideal for effective dewatering of domestic residences or commercial developments. Suitable for new installations or for renovation of old buildings.

Features:

  • Plug-in unit with CEE plug and phase sequence changeover facility
  • Easily transported and fitted. Compact dimensions allow passage through a standard door opening
  • Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high water alarm
  • Trouble-free maintenance thanks to simple removal of the motor housing
  • One variable inlet (DN 150) with 90° elbow, two horizontal (DN 150), and five vertical (2 x DN 100 / 150, 2 x DN 70, 1 x DN 40). One DN 70 port is needed as a vent line. DN 40 port is suitable for the connection of a hand membrane pump.
  • Discharge flange DN 80, plus flanged socket with 4" sleeve and clips (for discharge pipe DN 80/100)
  • Direct toilet connection possible in the case of wall-mounted WC units
  • Integrated valve system consisting of two ball-type, non-return valves
  • Option of 2- or 4-pole motors
  • Vortex impeller with large free passage, for reliable pumping of both faecal and faecal-free sewage
  • Sloping container floor prevents deposits
  • Built-in mains alarm (visual and acoustic), can be converted to mains-independent by inserting battery
  • Maximum allowable temperature of medium 40 ºC, or up to 60 ºC intermittent (max. 5 minutes)

Tank:

Synthetic, corrosion-resistant, gas- and odour-tight in accordance with EN 12050-1. Supplied as standard with pumps, junction piece with integral non-return valve system and cleaning openings, 4" sleeve and flange, automatic level control and control panel. Capacity: 320 litres.

Motor:

Water pressure sealed, squirrel cage 2 and 4-pole induction motor, with triple shaft seals and oil chamber. Electronic monitoring of stator temperature and overcurrent. Insulation: Class F for 155 ºC. Protection type: IP68

More Information
SKU 07565203
Manufacturer ABS
Manufacturers Warranty 1 Year
Weight 132.0 Kg

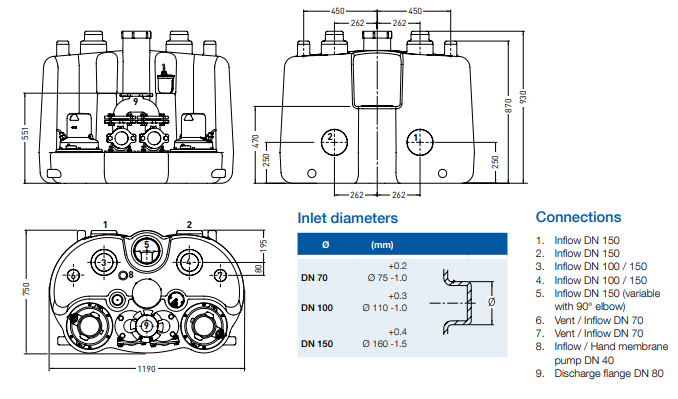

Dimensions 1190mm (w) x 930mm (h) x 750mm (d)
Motor Size (kW/W) P2 = 2.2kW
Full Load Current (FLC) 5.2A
Voltage 415V 3Ph 50Hz
RPM 1450rpm
Cable Length 4 metres

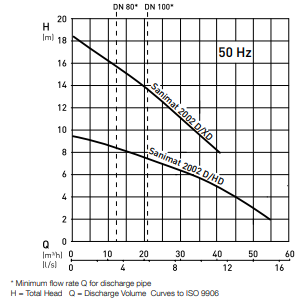

Max Flow 55m3/hr
Max Head 9m
Max Temperature Maximum allowable temperature of medium is 40 ºC, or up to 60 ºC intermittent (max. 5 minutes)
Material Polyethylene
