ABS Sanimat 1002 Lifting Station 415v

SKU
07565191
MRRP £10,391.00 + VAT Our price £6,234.00 (+ VAT) Incl. VAT: £7,480.80
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

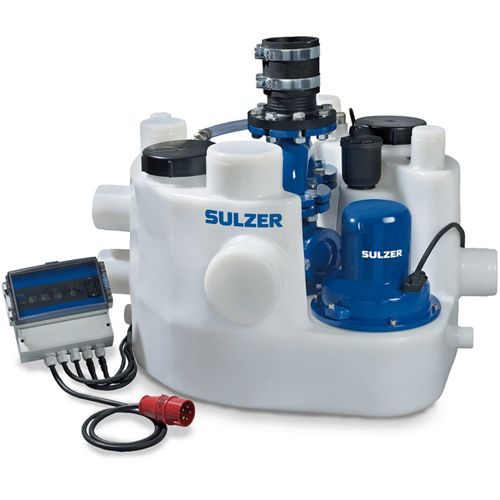

ABS Sanimat 1002 Lifting Station 415v - 07565191

Flood-proof, double lifting station, for automatic sewage pumping from areas below the backwash level in accordance with EN 12050-1. Ideal for effective dewatering of domestic residences or commercial developments. Suitable for new installations or for renovation of old buildings.

Features:

  • Plug-in unit with CEE plug and phase sequence changeover facility
  • Easily transported and fitted. Compact dimensions allow passage through a standard door opening
  • Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high water alarm
  • Trouble-free maintenance thanks to simple removal of the motor housing

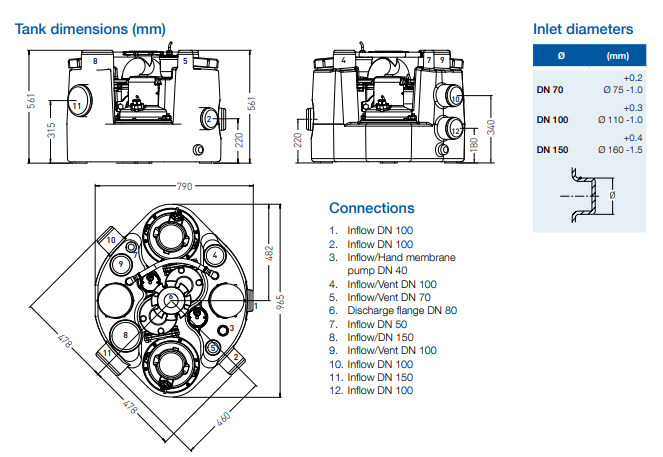

  • Five horizontal inlet ports (4 x DN 100, 1 x DN 150) and three vertical (2 x DN 100, 1 x DN 150). Vertical vent line DN 70 .Two small diameter ports (DN 40/50) suitable only for wastewater. DN 40 is suitable for connection of a hand membrane pump
  • Discharge flange DN 80, plus flanged socket with 4" sleeve and clips (for discharge pipe DN 80/100)
  • Direct toilet connection possible in the case of wall-mounted WC units
  • Integrated valve system consisting of two ball-type, non-return valves
  • Two pumps; very quiet running thanks to 4-pole, slow-running motors
  • Vortex impeller with large free passage and rear blade mounting, for reliable pumping of both faecal and faecal-free sewage
  • Sloping container floor prevents deposits
  • Built-in mains alarm (visual and acoustic), can be converted to mains-independent by inserting battery
  • Maximum allowable temperature of medium 40 ºC, or up to 60 ºC intermittent (max. 5 minutes)

Tank:

Corrosion resistant, gas- and odour-tight in accordance with EN 12050-1. Supplied as standard with pump, automatic level control and control box, non-return valve, 4" sleeve and flange. Capacity: 140 litres.

Motor:

Water pressure sealed, squirrel cage 4-pole induction motor, with triple shaft seals and oil chamber. Electronic monitoring of stator temperature and overcurrent. Insulation: Class F for 155 ºC. Protection type: IP68

More Information
SKU 07565191
Manufacturer ABS
Manufacturers Warranty 1 Year
Weight 115.0 Kg
Dimensions 965mm (w) x 790mm (d) x 561mm (h)
Motor Size (kW/W) P2 = 1.40kW
Full Load Current (FLC) 3.5A
Voltage 415V 3Ph 50Hz
RPM 1450rpm
Cable Length 4 metres

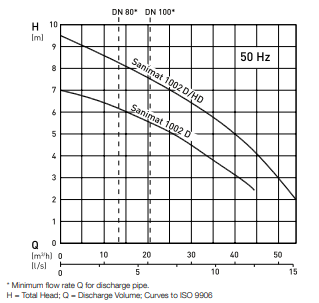

Max Flow 45m3/hr
Max Head 7m
Max Temperature Maximum allowable temperature of medium is 40 ºC, or up to 60 ºC intermittent (max. 5 minutes)
Material Polyethylene
