ABS Piranha 08D Submersible Grinder Pump Without Floatswitch 415v

SKU
05106404
MRRP £1,621.00 + VAT Our price £973.00 (+ VAT) Incl. VAT: £1,167.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

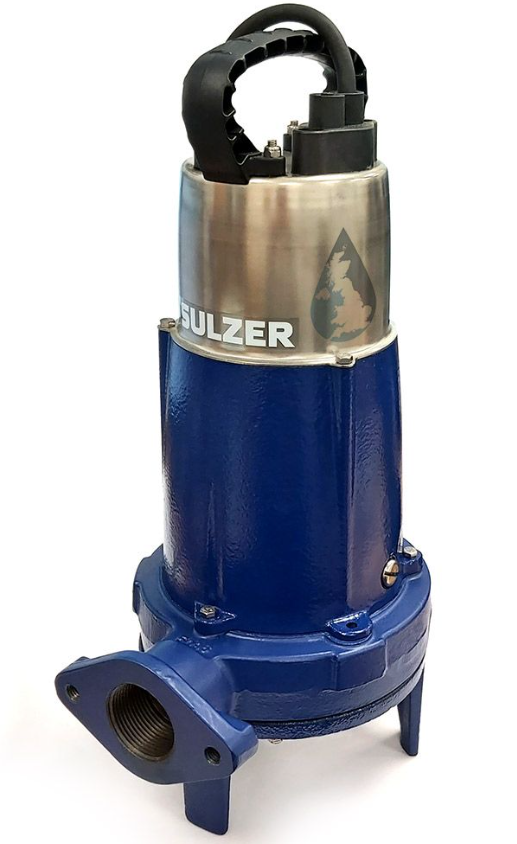

ABS Piranha 08D Submersible Grinder Pump Without Floatswitch 415v - 05106404

Submersible pumps for problem-free pumping of sewage containing faecal matter in pipe lines from 1¼” (DN 32). Piranha submersible pumps have been designed for effective and economic dewatering using discharge lines of small diameter, in private, municipal and industrial areas. The water pressure-tight, encapsulated fully flood-proof motor and the pump section form a compact, robust, unit construction. The stainless steel motor shaft is supported in lubricated-for-life ball bearings.

Features:

  • Unique Piranha shredding system capable of shredding items such as cloths and plastic bags
  • For the pumping of wastewater containing sewage, offal, organic and industrial effluent
  • Piranha 08 and 09 fitted with MF modular motor
  • Small discharge lines from 1¼” (DN 32)
  • Installations are possible where large ground undulations are present
  • Piranha 08 and 09 have capacitor in upper lid and do not require a control box
  • Low installation costs due to small diameter discharge pipework
  • Spiral bottom plate and stationary cutter ring combined witha shredding rotor located before the impeller, for optimum blockage-free running

Applications:

  • Sewage removal from living units and houses in remote settlements where the laying of a conventional sewer would be too expensive, where large ground undulations are present or where it is only possible to lay pipe lines of small diameter
  • Piranha 08 and 09 are specially designed for private and domestic applications
  • Maximum allowable temperature of the medium is 40 °C, or short term to 60 °C (max. 5 minutes)
More Information
SKU 05106404
Manufacturer ABS
Manufacturers Warranty 1 Year
Weight 18.0 Kg

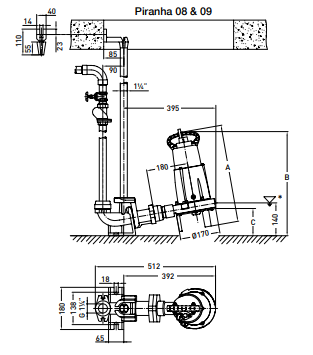

Dimensions 416mm (h) x 220mm (dia)
Connection Type 1 1/4 Inch Flanged
Motor Size (kW/W) P2 = 1.50kW
Full Load Current (FLC) 2.87A
Voltage 415V 3Ph 50Hz
RPM 3400rpm
Cable Length 10 metres

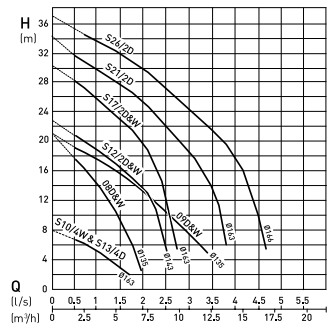

Max Flow 9m3/hr
Max Head 30m
Max Temperature 40°C, or short term to 60°C (max. 5 minutes)
Material Cast Iron
Impeller Material Cast Iron
