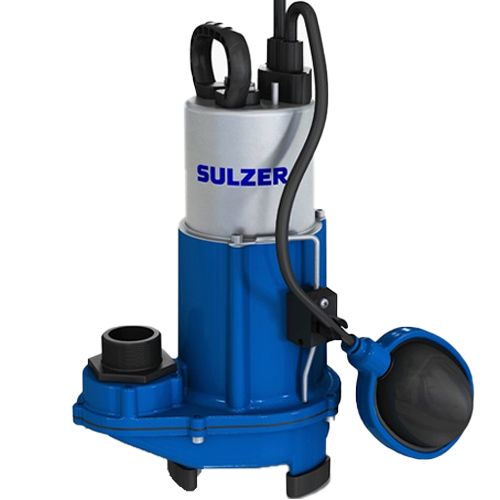

ABS MF 154HW-10m KS Submersible Pump With Floatswitch 240v
* Available where Guaranteed Stock Icon Appears Below
ABS MF 154HW-10m KS Submersible Pump With Floatswitch 240v - 01399165
Compact submersible pump for the removal of domestic and commercial high temperature wastewater that can contain solids up to 20mm. The water-tight, fully flood-proof cast iron motor and the hydraulics section comprise a compact, robust, unit construction. The stainless steel motor shaft is supported in lubricated-for-life ball bearings. The MF 154HW submersible pump has been designed to cover a wide range of internal and external dewatering applications, but primarily where the temperature of the medium exceeds the standard upper limit (40 °C) to a maximum allowable temperature of 80 °C
Features:
- Simple, cost-effective, pump installation
- Vortex hydraulics for blockage-free pumping in critical applications
- Free-standing on legs or pedestal mounted
- Mechanical and lip seals on rotor shaft
- KS version with float switch for automatic level control
- Thermal sensors in the stator to switch off the pump in the case of overheating and switch on automatically after cooling down
- EasyFit plug-in cable connection
- Single-phase fitted with Schuko plug
- Comes with a 1 1/2 inch to 1 1/4 inch Male-to-Male connector
Applications:
- Filling and emptying of containers to the drainage of flooded cellars and removal of rainwater
- Suitable for use in septic tanks and pumping effluent from locations below the backwash level in accordance with EN 12056
- The compact shape of the MF, fittings for easy mounting, and small sump requirements ensure a quick and cost-effective installation of the pump
| SKU | 01399165 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 9.0 Kg |

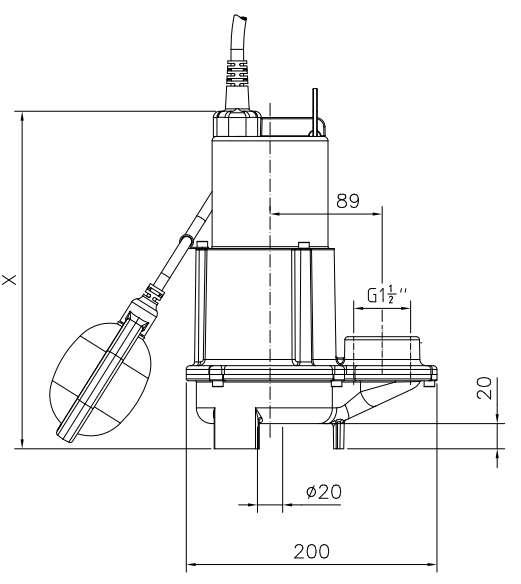

| Dimensions | 333mm (h) x 199mm (w) x 133mm (d) |
| Connection Type | 1 1/2 Inch BSP Female |
| Motor Size (kW/W) | P2 = 0.42kW |
| Full Load Current (FLC) | 2.8A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2900rpm |
| Cable Length | 10 metres |
| Float Switch | Yes |

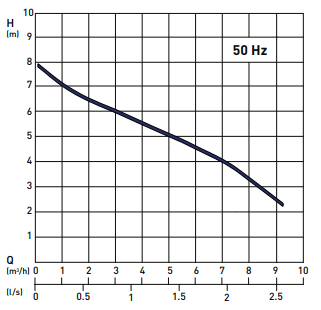

| Max Flow | 9m3/hr |
| Max Head | 8m |
| Max Temperature | Maximum allowable temperature of the pumped medium is 80°C (intermittent only) |
| Material | Cast Iron |
| Impeller Material | Polyamide |
