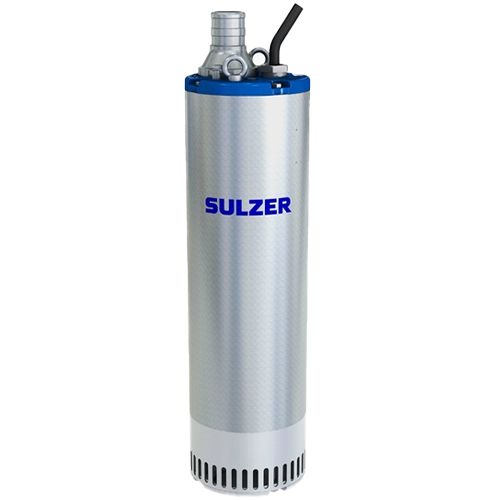

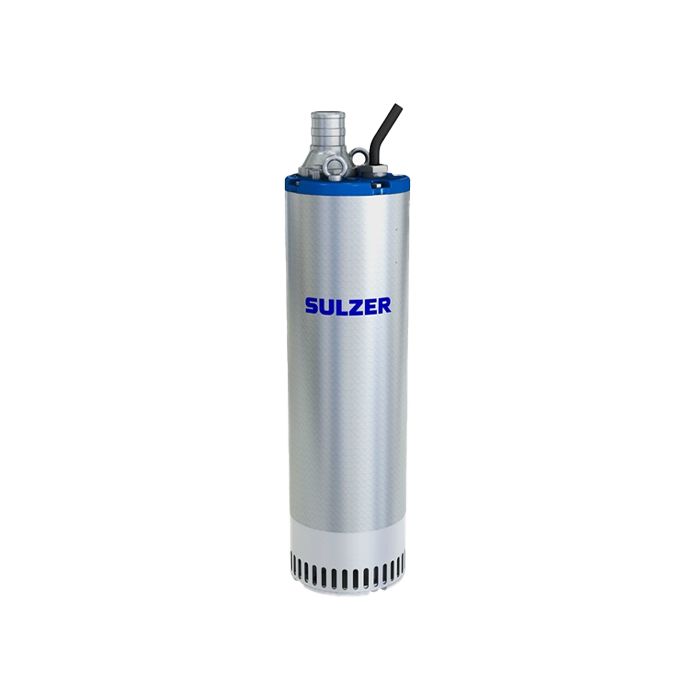

ABS JC 34 HD Central Discharge Submersible Drainage Pump 415v
* Available where Guaranteed Stock Icon Appears Below
ABS JC 34 HD Central Discharge Submersible Drainage Pump 415v - J41456232111111
The slim design of the submersible drainage centre-line pump JC 34 makes it perfect for applications with limited installation space. The pump is ideal for pumping water and dirty water mixed with light abrasives.
Features:
- Plug in without having to worry about overheating. Built-in thermal protection protects the motor from overheating
- One investment for years of cost-efficient pumping. Impeller in high chrome alloy steel ensures a long lifetime and high efficiency
- Double outer casing and good heat convection enable the pump to operate continuously at low levels or even run dry without damaging the motor
- Save time and money with easy on-site service. Modular design lowers the overall service costs. By removing the top cover of the pump, you can easily check the electrical junction box. Environmentally safe white oil is used in the oil casing for easy inspection of seal conditions
- Maximum submergence: 20 metres
- HD - high head
- Double mechanical seal in oil bath; Primary seal - silicon carbide on silicon carbide, secondary seal - stainless steal on antimony treated carbon
- Upper bearing: single-row deep groove ball bearing, lower bearing: double angular contact ball bearing
Applications:
- Dewatering in construction
- Dewatering in tunneling
**PLEASE NOTE THAT A DISCHARGE CONNECTION IS NOT PROVIDED WITH THIS PUMP AND MUST BE PURCHASED SEPARATELY.**
| SKU | J41456232111111 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 31.0 Kg |

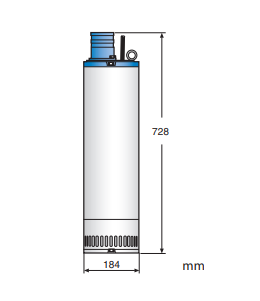

| Dimensions | 728mm (h) x 184mm (d) |
| Discharge Dimension | 2" hose connections |
| Motor Size (kW/W) | P2 = 3kW |
| Full Load Current (FLC) | 7.3 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2850rpm |
| Cable Length | 20 metres |
| Max Flow | 37m3/hr |
| Max Head | 35m |
| Max Temperature | Max temperature of pumped medium at max power input and continuous duty 40 ºC |
| Material | Aluminium |
| Impeller Material | Hardened Chrome Steel |
