ABS J604 ND Submersible Drainage Pump With Built-In Terminal Block 415v

SKU
J36357331112111
MRRP £54,757.00 + VAT Our price £32,855.00 (+ VAT) Incl. VAT: £39,426.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

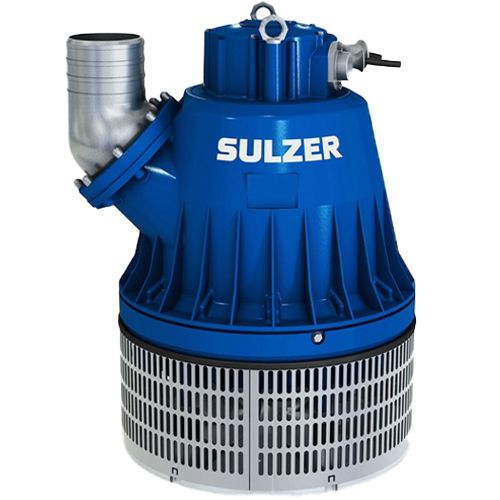

ABS J604 ND Submersible Drainage Pump With Built-In Terminal Block 415v - J36357331112111

The low weight and compact design of the submersible drainage pump J 604 ensures convenient transport, handling, and installation. The pump is ideal for pumping water and dirty water mixed with light abrasives.

Features:

  • Reliable, trouble-free operation also at low water levels
  • Double outer casing and good heat convection enable the pump to operate continuously at low levels or even run dry without damaging the motor
  • Double mechanical seal in oil bath, mounted in seal cartridge for easy service. Primary seal: Silicon carbide on silicon carbide. Secondary seal: Carbon on stainless steel
  • Upper bearing - single-row deep groove ball bearing; lower bearing - double angular contact ball bearing
  • ND = medium head
  • Maximum submergence: 20 metres
  • Star-Delta start with built-in terminal block
  • Save time and money with easy on-site service. Modular design lowers the overall service costs. By removing the top cover of the pump, you can easily check the electrical junction box. Environmentally safe white oil is used in the oil casing for easy inspection of seal conditions

Applications:

  • Dewatering in construction
  • Dewatering in tunnelling
  • Flood control
  • Mine water management

**Discharge connection required** Discharge Connections 6" (standard HD), 8", 10" (standard ND) hose connections. 6", 8" G/B.S.P. threaded connections

**PLEASE NOTE THAT A DISCHARGE CONNECTION IS NOT PROVIDED WITH THIS PUMP AND MUST BE PURCHASED SEPARATELY.**

More Information
SKU J36357331112111
Manufacturer ABS
Manufacturers Warranty 1 Year
Weight 525.0 Kg

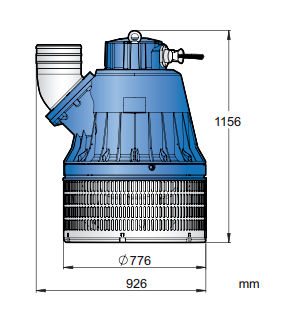

Dimensions 1156mm (h) x 926mm (d)
Motor Size (kW/W) P2 = 56kW
Full Load Current (FLC) 106 A
Voltage 415V 3Ph 50Hz
RPM 1450rpm
Cable Length 20 metres
Max Flow 1100m3/hr
Max Head 30m
Max Temperature Max temperature of pumped medium at max power input and continuous duty 40 ºC
Material Aluminium
Impeller Material White Cast Iron
