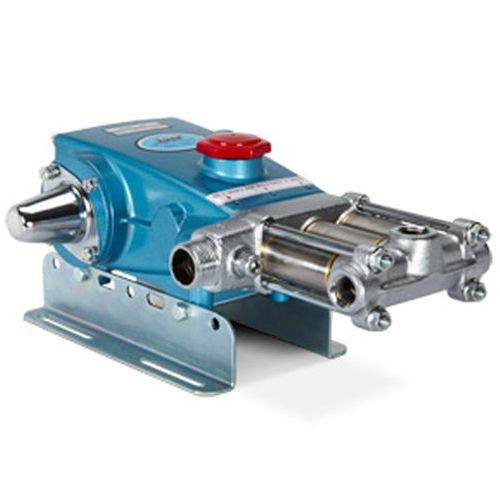

390 - 5FR Cat Piston Pump

£ £743.00 (+ VAT)
Order within
for next day delivery i

For over 40 years, Cat Pumps has been providing the longest-lasting reciprocating triplex piston pumps available. This design allows for a cost-effective pump to achieve high efficiency and low pulsation. The design of the piston pump moves the fluid continually in one, smooth forward direction. This allows greater suction capabilities and reduces the risk of cavitation.

A wide product range of piston pumps are kept in stock:   0.25 – 60 GPM and 100 – 1,500 PSI. Pumps are available in brass and 304 stainless steel. Cat Pumps’ products are backed up with readily-available inventory, outstanding customer support and a world-wide distribution network.

All Cat Pumps and Spares are available from Anchor Pumps and are available on POA. If can't find the pump you are after please call 0800 112 3134.

More Information
SKU 390
Manufacturer Cat
Manufacturers Warranty 1 Year
Weight 8.5 Kg
Dimensions 363mm x 254mm x 134mm
Motor Size (kW/W) 3.6 kW
RPM 1200
Max Flow 45.6 lpm
Working Pressure 41 Bar
Material Brass
Shaft Diameter 20 mm
