Lowara Micro 6 + 6 Mini Vortex SL/BV + Panel (400v)
* Available where Guaranteed Stock Icon Appears Below

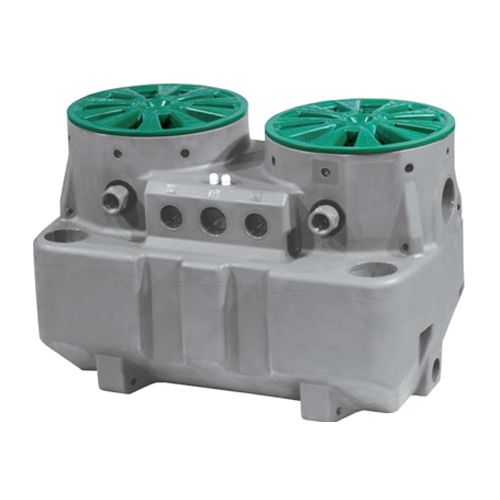

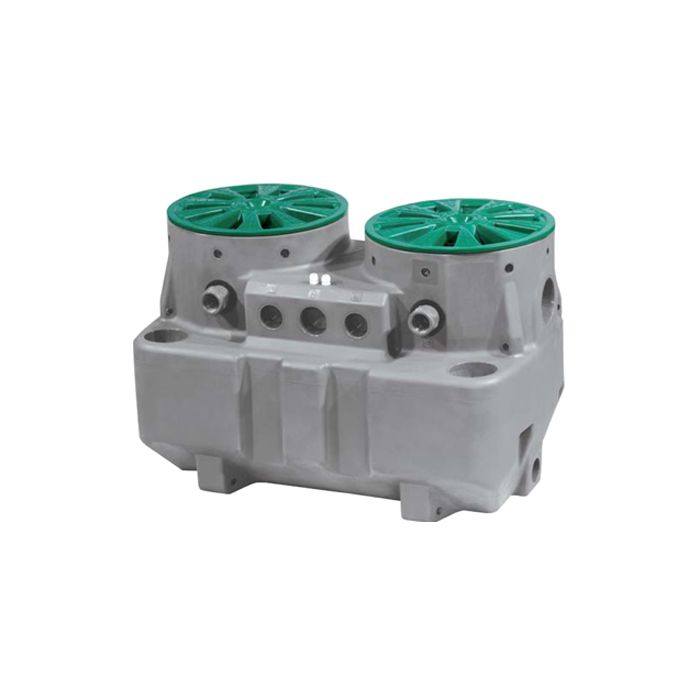

Lowara Micro 6+6 Mini Vortex SL/BV
Suitable for delivering grey water and wastewater to main sewer lines located at a higher level, or where gravity drainage is not possible.
Specifications
• The standard station is equipped with:
- polyethylene basin with a capacity of 550 litres, equipped with two threaded pedestrian covers (100 kg max). - Cable glands for power supply cables (and floats). - Rp 2 x 2” delivery pipes for easy disassembly of the pumps or with sliding device.
- 8 fast connections: 4 x DN110 for inlet, 2 x DN50 for ventilation and 2 x DN65 for cable connection.
- 1 x DN50 fast connection for the manual pump. - 2x DOMO or DL submersible pumps, vortex, channel impeller type or with grinder device.
- 3 rubber seals: 1 x DN110, 1 x DN50 and 1 x DN65 mm.
• Versions with vortex impeller or with grinder device suitable for:
- clean water, effluent, sewage containing suspended solids and fibres.
• Versions with single or twin channel impeller suitable for:
- clean water, effluent, sewage containing suspended solids but not containing fibres.
• Standard version equipped with sliding device and non-return ball valve.
• MICRO 6+6 can be installed on the floor or buried in a suitable structure following instructions in the “Instructions and Operative Manual”.
• Easy installation:
- installation is quick and easy: just connect the pipes and the electrical cables.
- The new MICRO 6+6 is provided with side handles for ease of handling.
- Pre-installed delivery pump.
• Ecological solution:
- tank made from 100% recyclable polyethylene.
- Airtight anti-pollution tank, according to European standard EN 12050.
• Easy maintenance and repair.
- Tried and tested pump technology.
- Pump quick and easy to remove thanks to the sliding device.
| SKU | 109439160GQ4JDX1 |
|---|---|
| Manufacturer | Lowara |
| Manufacturers Warranty | 1 Year |
| Weight | 70.0 Kg |

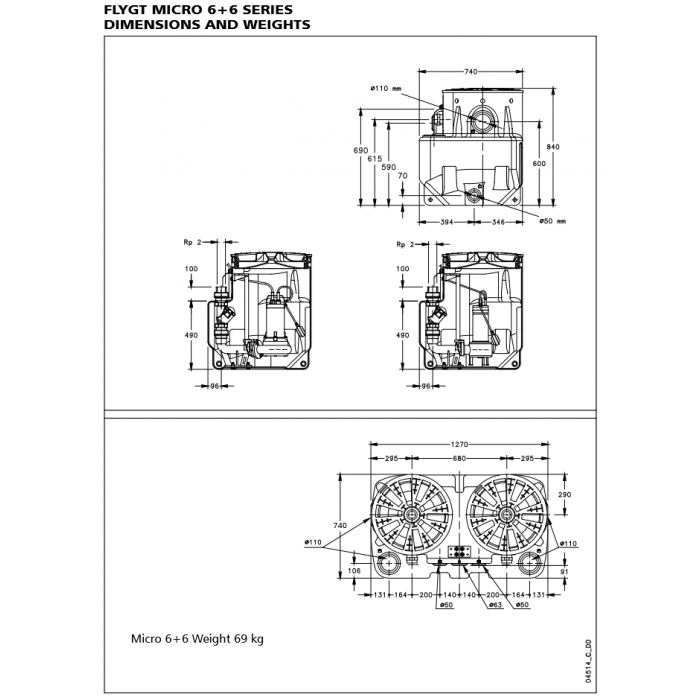

| Dimensions | 1270cm (L) x 740cm (W) x 840cm (H) |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2850 |
| Material | Plastic |
| Seal Type | Carbon |
| Impeller Material | Cast Iron |
| Manufactured In | United Kingdom |
