Grundfos MAGNA3 65-100F (340) Single Head Circulator 240v (CC: 0003)

SKU
97924297CC1
MRRP £4,240.00 + VAT Our price £1,500.00 (+ VAT) Incl. VAT: £1,800.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

This is a Clearance Corner item - Please see details below

CC Stock Number: 0003

Product Code: 97924297

Manufacturer: Grundfos

Model: Magna3 65-100F

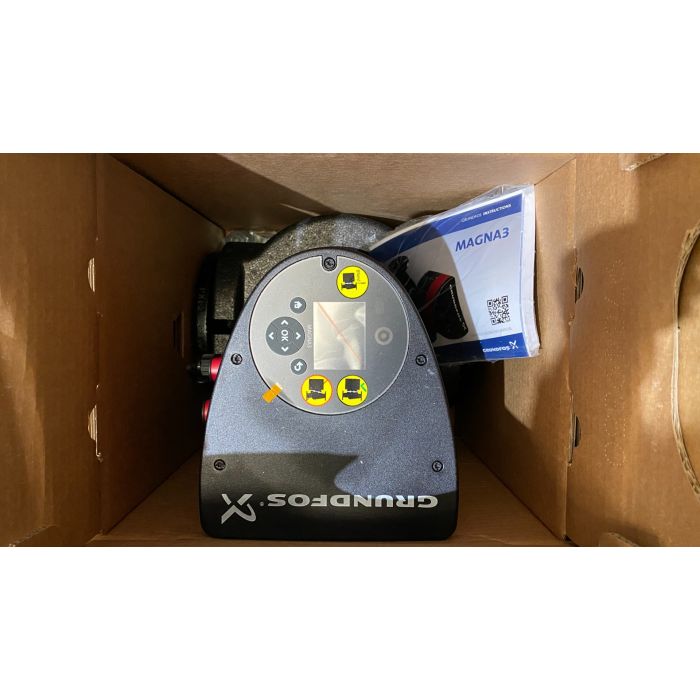

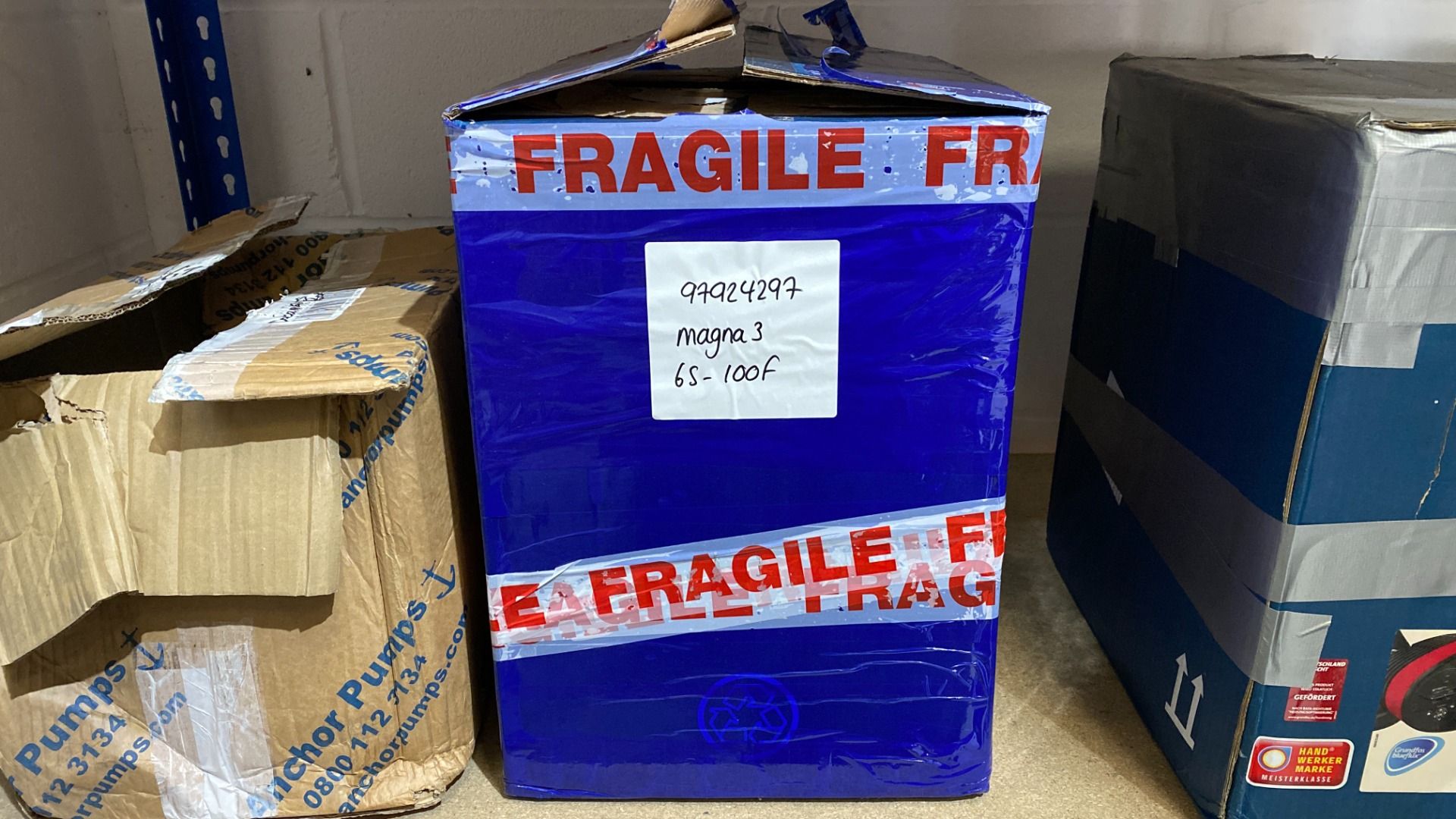

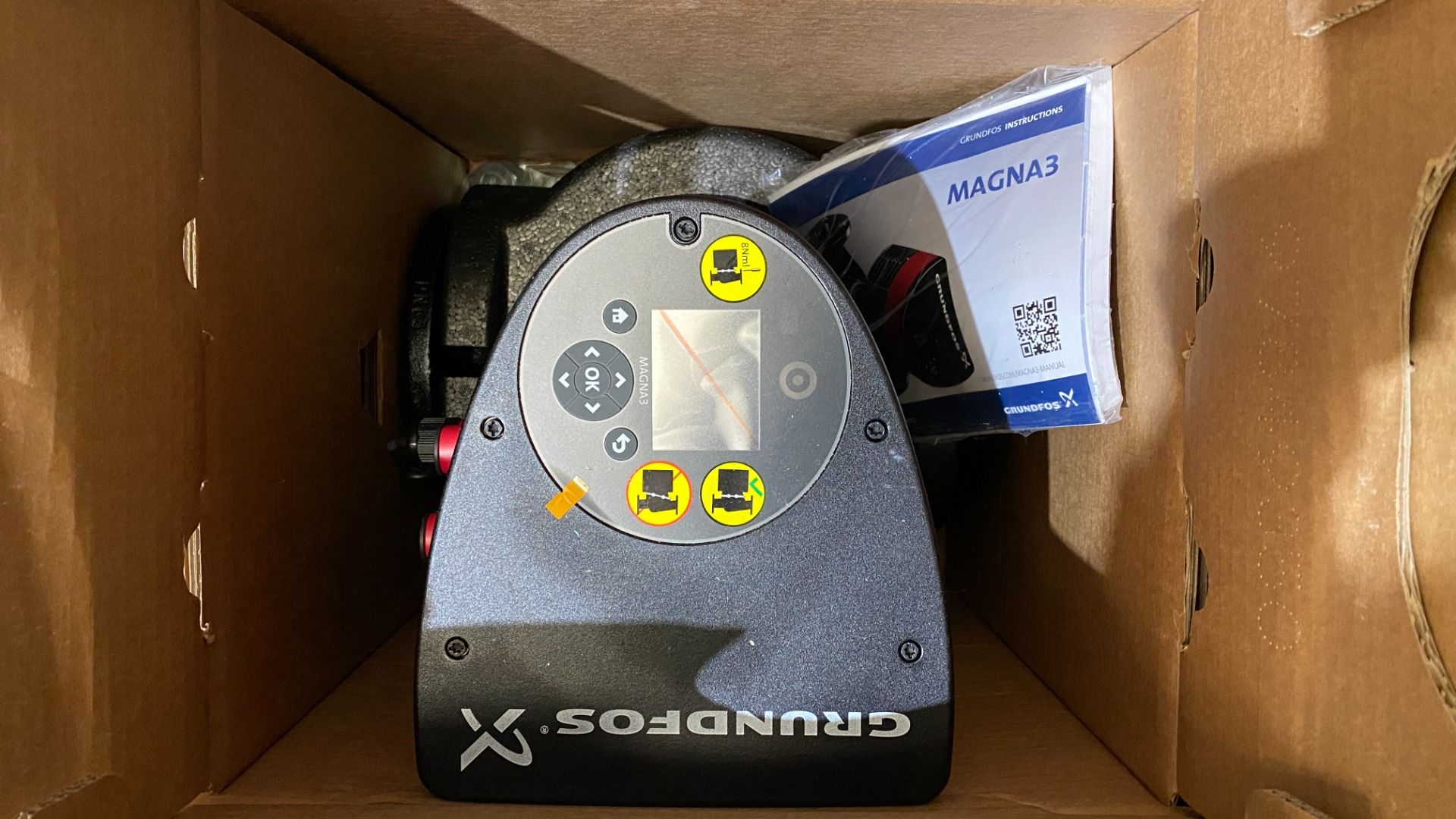

Comments: Box wrapped in blue film, covering worn box. Sturdy box. Pump in like-new condition, with OEM protective film still on control panel. 2019 model pump. Tested, works normally. Original documentation and insulation kit included.

CC Signed In: 09/02/23

If you have any questions regarding this pump, please contact us on 01925 761 120 or email us at sales@anchorpumps.com

----------------------------------------------------------------

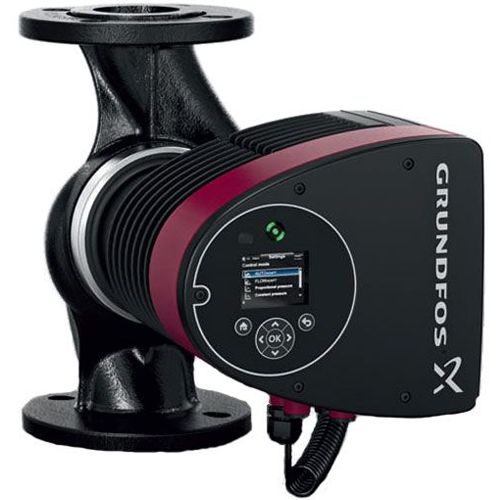

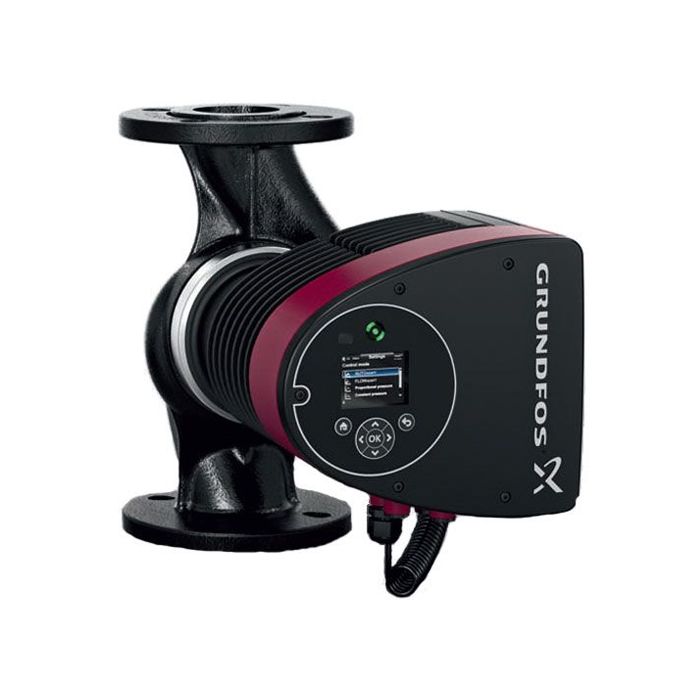

The Grundfos MAGNA3 is a range of medium and large circulator pumps complete with electronically controlled motors.

The MAGNA3 range is designed for circulating liquids in:

  • Heating systems
  • Air conditioning and cooling systems
  • Domestic water systems
  • Ground-source heat pump systems
  • Solar heating systems.

Setting the MAGNA3 is simple – just install the pump and leave it on the AUTOADAPT setting, the pump will then analyse the heating system demands and find the optimum setting. It will then continuously adjust its operation to deal with changing system demands.

The new pump also encompasses some new and unique features:

  • The MAGNA3 features a facility to limit maximum flow removing the need to use a balancing valve on the main flow and return pipe
  • FLOWADAPT combines the benefits of both the FLOWLIMIT and AUTOADAPT functions together
  • The MAGNA3 features a built-in heat energy meter. By fitting a separate temperature sensor in the return pipe the energy consumption in the system can be monitored and logged in the MAGNA3. This allows end users to monitor their energy consumption in order to avoid excessive energy bills caused by poor system balance and potential problems with system controls
  • The MAGNA3 is the most efficient circulator available, with an Energy Efficiency Index (EEI) that already complies with the EuP 2015 requirements and can achieve savings of up to 75% compared to a typical installed circulator
More Information
SKU 97924297CC1
Manufacturer Grundfos
Clearance Corner Product Number 0003
Clearance Corner Signed In Feb 9, 2023
Item Condition Brand New
Box/Bag Condition Worn
Manufacturers Warranty 1 Year
Weight 24.0 Kg

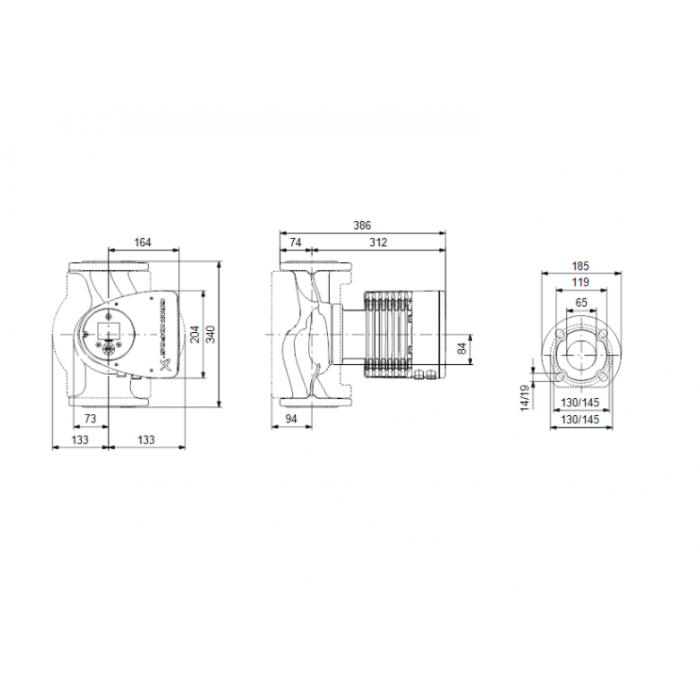

Dimensions 340mm (h) x 386mm (d) x 185mm (w)
Motor Size (kW/W) 21-613W
Full Load Current (FLC) 0.23-2.7A
Voltage 240V 1Ph 50Hz

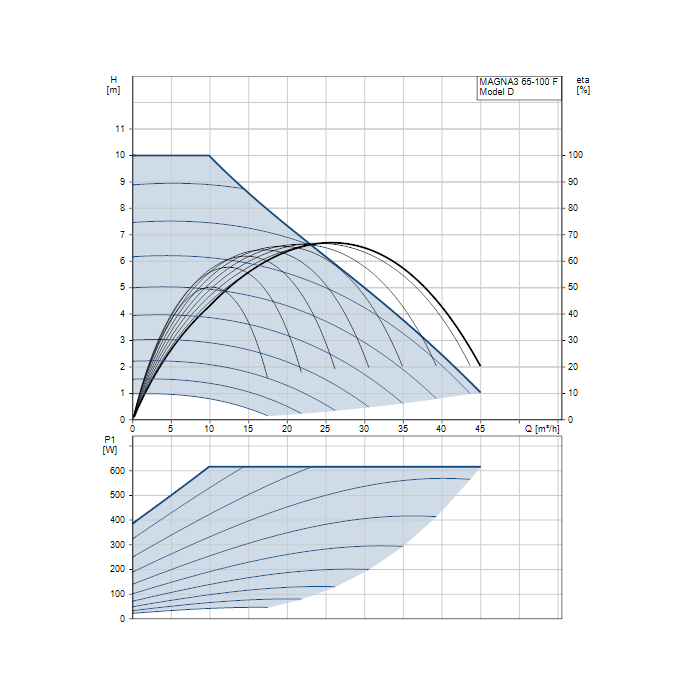

Max Flow 43m3/hr
Max Head 10m
Material Cast Iron
