Grundfos UPS 25-80 (180) Light Commercial Circulator 240V replaced with MAGNA1 25-80 (180)

Availability: In stock

MRRP: £550.00 + VAT

Our Price Excl. VAT: £340.00 + VAT Incl. VAT: £408.00

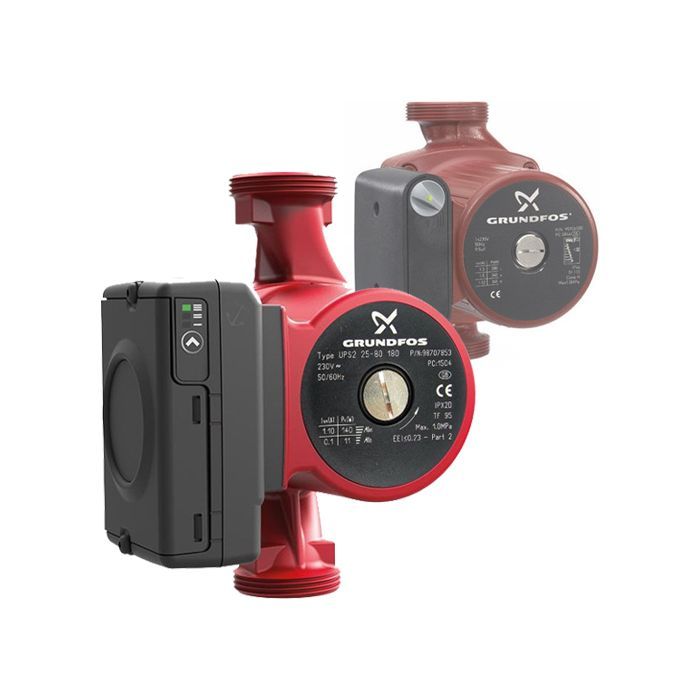

Grundfos UPS 25-80 (180) Light Commercial Circulator pump

Due to new European Legislation brought into force in January 2013, the UPS 25-80 (180) is no longer manufactured.  On purchase of this pump, we will automatically upgrade your order to the new EUP ready Energy Efficient MAGNA1 25-80 (180) at no extra cost.

Please note, this pump requires no adjustments to pipework and is a direct replacement for the UPS 25-80.

The MAGNA1 circulator pumps are designed for circulating liquids in heating systems with variable flows and also for domestic hot-water systems with easy selection of pump setting, no maintenance requirements and extremely low life cycle cost.

Applications include:

  • Heating systems
  • Main pump
  • Mixing loops
  • Heating and Air-conditioning

The pump is also suitable for systems with hot-water priority as an external signal can immediately force the pump to operate according to the max. curve, for  example in solar-heating systems.


  • Safe selection
  • Simple installation
  • Low energy consumption (MAGNA1 pumps comply with the EuP requirements)
  • Nine light fields for indication of pump setting.
  • Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available
  • Low noise level
  • Maintenance free and long life


  • Pumped liquid: Water
  • Liquid temperature range: -10 .. 110 °C

MAGNA1 25 Series have 180mm port-to-port dimensions and 1 1/2" BSPM connections


Pump ModelGrundfos UPS 25-80 (180) Light Commercial Circulator 240V replaced with MAGNA1 25-80 (180)
Product Code (SKU)95906429/ 97924144
Pump TypeVariable Speed Circulators
MaterialCast Iron
Voltage240V 1Ph 50Hz
Dimensions180mm high x 203mm wide x 196mm deep
Max. Flow8.5m3/hr
Max. Head7m
Motor Size (kW/W)9-128W
Full Load Current (FLC)0.09-1.03A
Single/TwinSingle Head
