Grundfos UPS 25-60 (130mm) Domestic Circulator Pump 240V replaced with Alpha1L 25-65 (130) 99165123
* Available where Guaranteed Stock Icon Appears Below

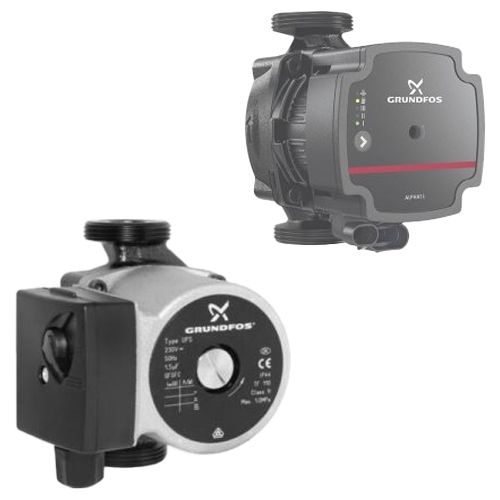

Grundfos UPS 25-60 (130) Replaced With Alpha1L 25-65 (130) 99165123
The Grundfos Alpha1L 25-65 Will Be Supplied As A Replacement For The UPS 25-60 (130)
Please Note - There is a slight reduction in performance for this new model - please contact the office for further information.
Please check part number 99165123 for further information.
The Grundfos UPS2 25-40/60 (130) is a high-efficiency circulator pump with permanent-magnet motor (ECM technology) and continuously variable speed control for circulation of clean heating water.
The Alpha1L is the ideal replacement for UPS 25-40 (130) and UPS 25-60 (130) & UPS2 25-40/60 (130) pumps in domestic heating systems, it comes complete with modern motor technology and electronic control which enables it to exceed new EuP/ErP standards.
Features and benefits
- Three Pumps in One - The UPS can be set to meet the requirements of a UPS25 model designed for either 4m or 6m performance.
- Control Box - The control box of the UPS can be mounted on the left, right or on the top.
- Cable Gland - The cable gland of the UPS is the same design. This minimises time taken on changeover.
- Dimensions - The UPS is almost identical in overall dimensions to the UPS25-40/UPS25-60 models.
- Vent screw - The UPS is fitted with a screw which allows manual venting to remove air from the heating system.
| SKU | 96281476 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| Weight | 2.1 Kg |
| Dimensions | 130mm (h) x 155mm (w) x 156mm (d) |
| Motor Size (kW/W) | 48 W Max |
| Full Load Current (FLC) | 0.42A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 3.1m3/hr |
| Max Head | 6m Max |
| Material | Cast Iron |
| Impeller Material | PES |
| Old Sku | 96281476 |
