Grundfos UP 20-30N (150) Hot Water Service Circulator 240V

Availability: In stock

MRRP: £317.00 + VAT

Our Price Excl. VAT: £222.00 + VAT Incl. VAT: £266.40


Grundfos UP 20-30N domestic Hot Water Service Circulator pump is suitable for domestic Hot Water applications.

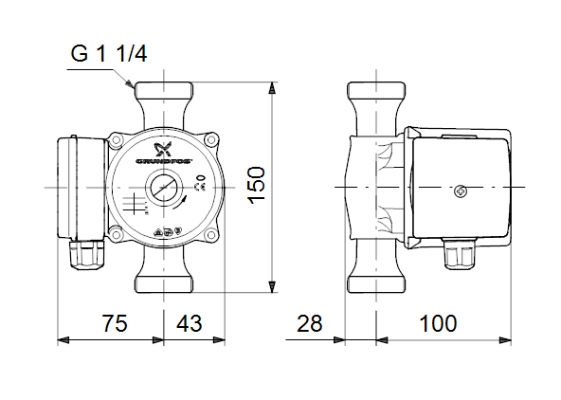

This pump has 150mm port to port dimensions.  Fittings are not included, see related items for 3/4" Brass BSP Union Set required.


Pump ModelUP 20-30N (150)
Product Code (SKU)98057221
Pump TypeHot Water Circulators
MaterialStainless Steel
Voltage240V 1Ph 50Hz
Dimensions150mm high x 118mm wide x 128mm deep

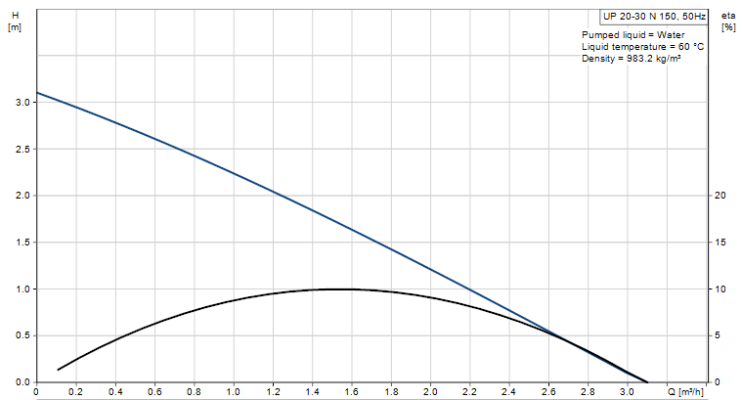

Max. Flow3m3/hr
Max. Head3m
Motor Size (kW/W)75W
Full Load Current (FLC)0.31A
Single/TwinSingle Head
