Grundfos PM2 AD Pressure Manager for JP5 and JP6 Booster, CM Pumps and SQ 3" Submersible Borehole Pumps

SKU
96848738
MRRP £315.00 + VAT Our price £134.00 (+ VAT) Incl. VAT: £160.80
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

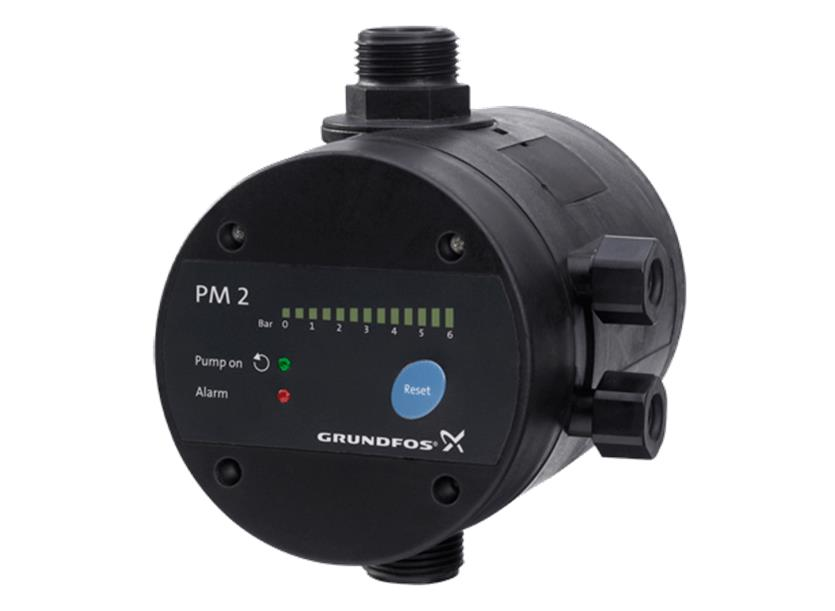

PM2 AD Pressure Manager for use with the Grundfos JP5 and JP6 Booster Pumps, CM Pumps and SQ 3" Submersible Borehole Pumps.

The PM 2 is the all-round control solution offering adjustable start at 1,5 - 5 bar bar. This enables customisation to different types of installations and desired comfort level.

The start pressure is set by means of DIP switches located behind the control panel whereas the current pressure is indicated on the LED display on the front of the PM 2. The PM 2 starts the pump when the start pressure is reached, and the pump keeps running as long as there is a flow.

The PM 2 can be optimised for operation with an external pressure tank by enabling the 1 bar differential-pressure function. This function significantly reduces the number of operating hours of the pump in installations with pressure tank.

More Information
SKU 96848738
Manufacturer Grundfos
Manufacturers Warranty 1 Year
GTIN 5700311918753
Weight 1.9 Kg

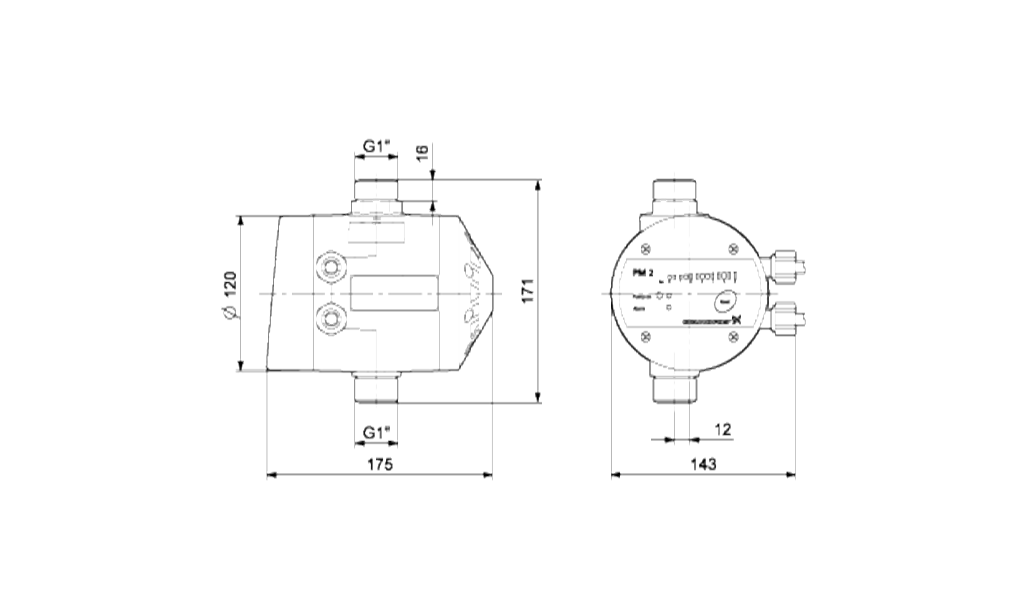

Dimensions 171mm (h) x 175mm (d) x 143mm (w)
Motor Size (kW/W) 2000W
Voltage 240V 1Ph 50Hz
Material Plastic
